| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 8000 & 7000 Series Processors |
|
| Chipset | AMD B650 |
|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated AMD RDNA 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Special Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |

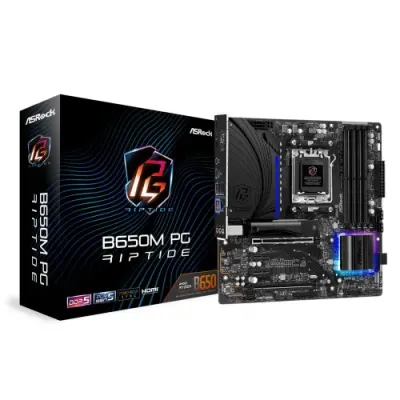

The ASRock B650M PG Riptide AM5 Micro ATX Motherboard is designed to unleash the full potential of AMD Ryzen 8000 and 7000 Series processors, offering top-tier performance for gamers and power users. With support for up to 128GB of DDR5 RAM, it provides faster data processing speeds and lower latency, perfect for intense gaming, video editing, and content creation. Equipped with two PCIe 4.0 x16 slots, it enables high-speed connectivity for graphics cards and NVMe SSDs, delivering ultra-fast performance. The motherboard also features HDMI and DisplayPort outputs, ensuring seamless 4K visuals and high refresh rates for smooth gaming and multimedia experiences. Its robust power delivery system and advanced cooling solutions ensure optimal system stability and efficiency. With additional PCIe 3.0 slots, multiple storage interfaces, and future-proof connectivity, the ASRock B650M PG Riptide is a versatile and reliable choice for building a high-performance PC that can handle modern gaming and professional workloads effortlessly.
